Modern tunneling - and especially TBM tunneling - is unthinkable without using chemistry. Similar to our daily life, many things used quite naturally are based on modern chemistry: Visible Success - invisible contribution.

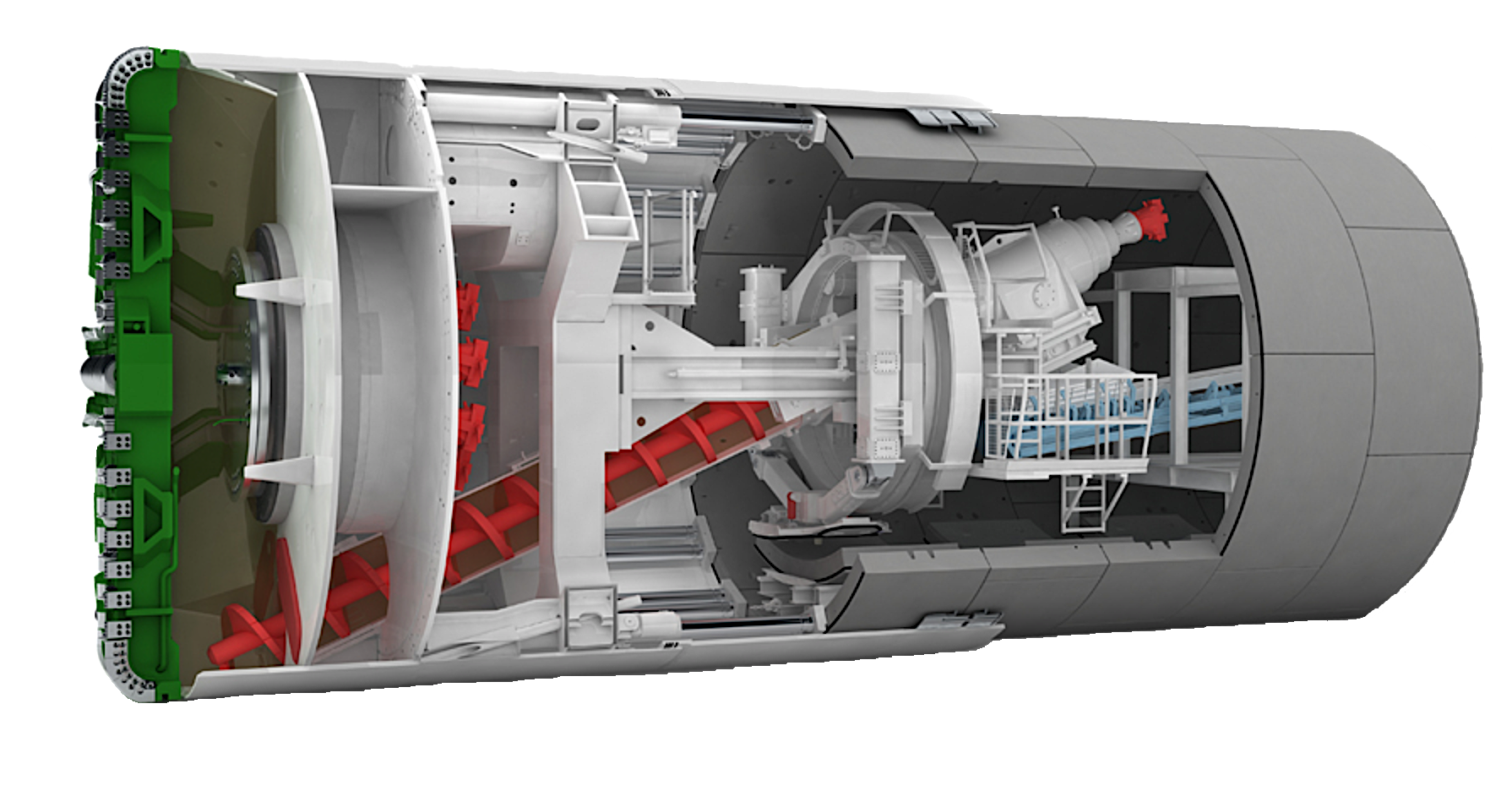

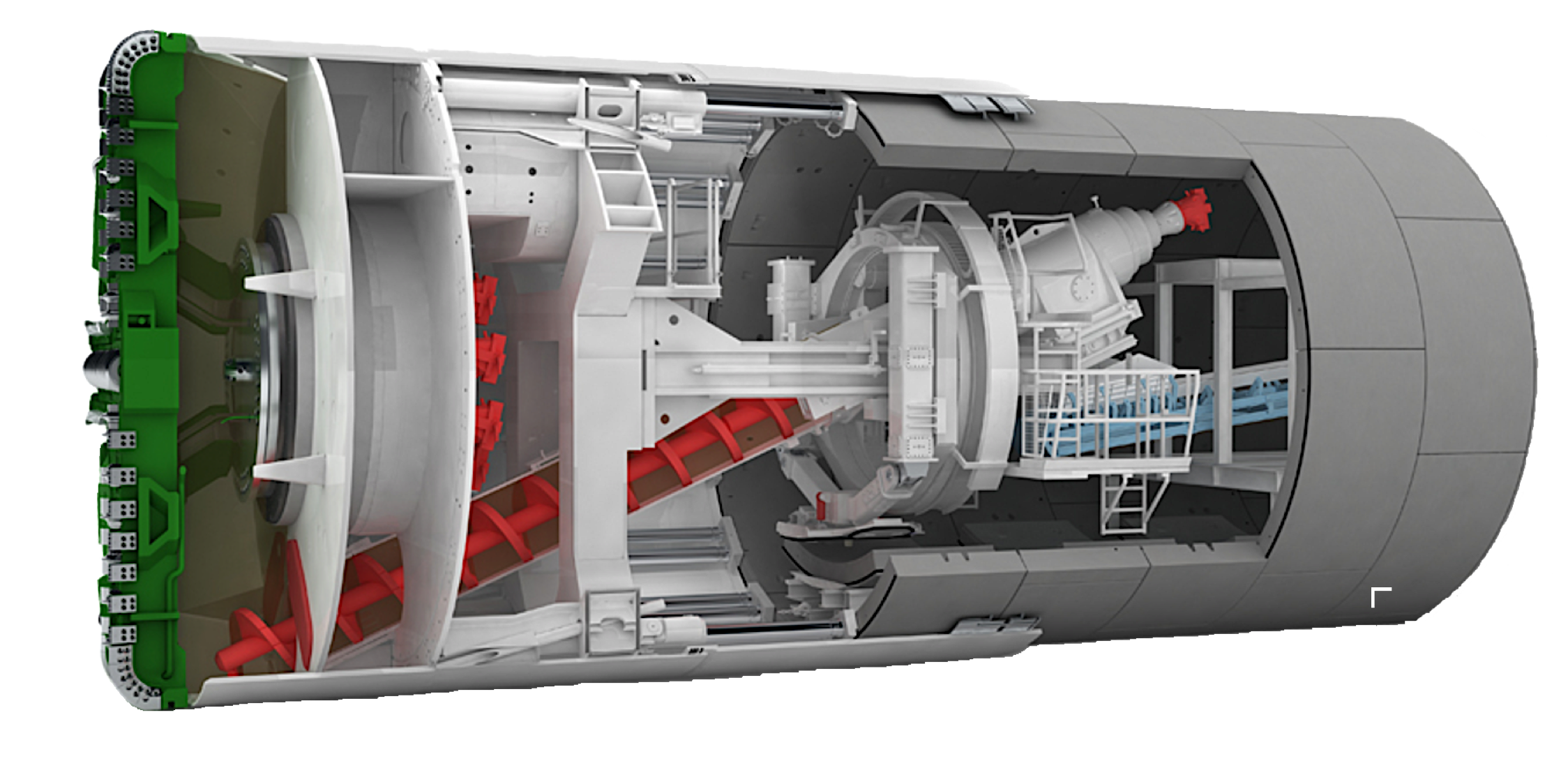

Soil Conditioners allow reducing cutterhead torque values and wear as well as securing a complete filling of the working chamber independent of the present geological conditions, allowing the application of the correct EPB pressure for achieving minimum settlement rates.
Tail Sealants seal the gap at the shield tail together with the brushes against water, soil or annulus grout inflow.
Main Bearing Sealants & Greases protect and lubricate the main bearing.
Furthermore, speciality chemicals are used to adapt the use of annulus grouts, pre-injection can be used for soil stabilisation, start and reception shafts, safe havens, cross passages and many more applications. New developments like sprayable waterproofing membranes or structural support liners (SSL) could only be developed with modern chemistry. These developments increase significantly the safety as well as decrease costs in difficult geometries.
If TBM additives are not correctly used - what can go wrong?
Soil Conditioners MC-Montan DRIVE
Foaming agents (polymerized): FL 02, 02RU, 02WR, FL 03, FL 12
Foaming anti-clogging agents: FL 04, 04FR, 04 CA, 04RU, FL16
Anti-clogging polymers: CA02, CA04
Structuring polymers: LB02, LB11
ArtSoil (TM)
Defoamers MC-Montan DRIVE
DF
Annulus grout additives MC-Montan GROUT
2k accelerator: 01
2k superplasticiser: 08
Retarder: 04
Viscosity Modifier: 05
Anti-gypsum swelling: AA03, DA04
Foaming annulus grout: FM
Main bearing greases MC-Montan SUPPORT
Main bearing sealing / excluder grease: MB S1
Main bearing lubrication / EP2 grease: MB L1, L11
Flocculants MC-Montan SUPPORT
FA anionic / cationic
Annulus grout additives MC-Montan GROUT
2k accelerator: 01
2k superplasticiser: 08
Retarder: 04
Viscosity Modifier: 05
Anti-gypsum swelling: AA03, DA04
Foaming annulus grout: FM
Main bearing greases MC-Montan SUPPORT
Main bering sealing / excluder grease: MB S1
Main bearing lubrication / EP2 grease: MB L1, L11
Defoamers MC-Montan DRIVE
DF
Annulus grout additives MC-Montan GROUT
Retarder: 04
Viscosity Modifier: 05
Anti-gypsum swelling: AA03, DA04
Drainage grout (k>10-4 m/s): DrainGrout (TM)
Geopolymer grout: BG02
Main bearing greases MC-Montan SUPPORT
Main bering sealing / excluder grease: MB S1
Main bearing lubrication / EP2 grease: MB L1, L11
Sprayed concrete MC-Montan SHOTCRETE
Alkali free accelerator: HA01
Defoamers MC-Montan DRIVE
DF
Stabilisation & cavity filling MC-Montan INJEKT
Duromer resin (sealing & consolidation): FR, FN, FS
Organo-mineral resin (consolidation & waterproofing): CB
Elastomer resin (sealing & consolidation): DR, DS
Duromer foam (void filling): LE
Main bearing greases MC-Montan SUPPORT
Main bering sealing / excluder grease: MB S1
Main bearing lubrication / EP2 grease: MB L1, L11
